The mean roof height of the building shall be the average of roof eave and highest point of roof surface, except for roof with slope <= 10°, mean roof height is permitted to be taken as the roof eave height.
ASCE 7-22 Compliant Wind load Calculator- Glazing & Façades
Introducing our ASCE 7-22 Compliant Wind Load Calculator for Glazing & Façades – your ultimate tool for designing structures that withstand the elements with grace and strength! With just a few clicks, it delivers precise calculations tailored to the latest standards, ensuring your glazing and façade designs meet regulatory requirements with ease. Say hello to streamlined design and bid farewell to guesswork!
WLC Guidelines
BUILDING HEIGHT
TYPE OF ENCLOSURE
1. Enclosed / Partially open building
Enclosed building: Total openings (windows / doors) in each wall shall be less than 4 sq.ft. or 1% of wall area. Partially open building: The building that doesn’t satisfy any of the other conditions.
2. Partially enclosed building
Total area of openings in a wall exceeds the sum of others openings in the building envelope by 10%, and the total area of openings in a wall exceeds 4 sq.ft. area or 1% of area of wall whichever is greater.
3. Open building
Each wall shall be at least 80% open.
LEAST HORIZONTAL DIMENSION

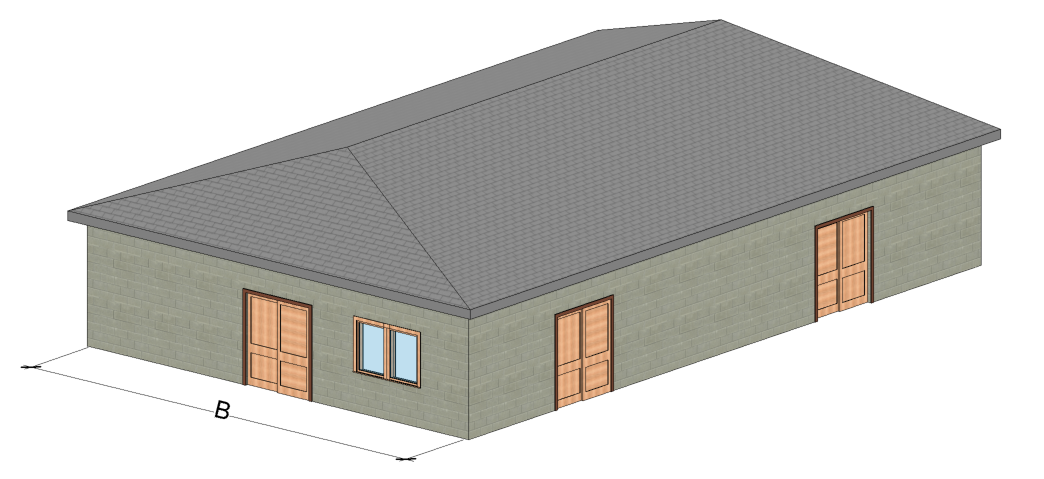

CASE A
Least horizontal dimension = B
CASE B
Least horizontal dimension = minimum of B1 & B2
Actual Height
ACTUAL HEIGHT IS THE HEIGHT OF OVERHEAD SLAB AT THE INTERMEDIATE STORY (HIGHLIGHTED BELOW) WHERE WIND LOADS CALCULATION IS REQUIRED.
Tributary Area
Fixed Window System
Formula: Ta = w * h
Storefront / Multi Panel Doors / Curtain walls
Case A
Condition: h > w max(w1, w2, w3)
Formula: Ta = min(w1, w2, w3) × h
Case B
